communication.c File Reference

Implements the PIPE and MessageRequest structures management. This module is only used by slave kernel. More...

#include "communication.h"
#include "../include/plasma.h"
#include "utils.h"

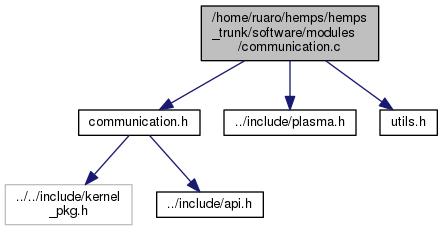

Include dependency graph for communication.c:

Functions
void	init_communication ()
int	add_PIPE (int producer_task, int consumer_task, Message *msg)
unsigned int	search_PIPE_producer (int producer_task)
unsigned int	PIPE_msg_number ()
PipeSlot *	remove_PIPE (int producer_task, int consumer_task)
PipeSlot *	get_PIPE_free_position ()
int	insert_message_request (int producer_task, int consumer_task, int requester_proc)
int	search_message_request (int producer_task, int consumer_task)
int	remove_message_request (int producer_task, int consumer_task)
int	remove_all_requested_msgs (int requested_task, unsigned int *removed_msgs)

Variables
PipeSlot	pipe [PIPE_SIZE]
	pipe array
MessageRequest	message_request [REQUEST_SIZE]
	message request array
unsigned int	pipe_free_positions = PIPE_SIZE
	Stores the number of free position in the pipe.

Detailed Description

Implements the PIPE and MessageRequest structures management. This module is only used by slave kernel.

HEMPS VERSION - 8.0 - support for RT applications

Distribution: June 2016

Created by: Marcelo Ruaro - contact: marce.nosp@m.lo.r.nosp@m.uaro@.nosp@m.acad.nosp@m..pucr.nosp@m.s.br

Research group: GAPH-PUCRS - contact: ferna.nosp@m.ndo..nosp@m.morae.nosp@m.s@pu.nosp@m.crs.b.nosp@m.r

Function Documentation

int add_PIPE	(	int	producer_task,
		int	consumer_task,
		Message *	msg
	)

Add a message to the PIPE if it have available space

Parameters

producer_task	ID of the producer task
consumer_task	ID of the consumer task
msg	Message pointer for the message to be stored

Returns

0 if pipe is full, 1 if the message was stored with success

PipeSlot* get_PIPE_free_position

(

)

Gets a pipe free position pointer

Returns

PipeSlot free position pointer

void init_communication

(

)

Initializes the message request and the pipe array

int insert_message_request	(	int	producer_task,
		int	consumer_task,
		int	requester_proc
	)

Inserts a message request into the message_request array

Parameters

producer_task	ID of the producer task of the message
consumer_task	ID of the consumer task of the message
requester_proc	Processor of the consumer task

Returns

0 if the message_request array is full, 1 if the message was successfully inserted

unsigned int PIPE_msg_number

(

)

Counts the number of message in the pipe

Returns

The number of messages in the pipe

int remove_all_requested_msgs	(	int	requested_task,
		unsigned int *	removed_msgs
	)

Remove all message request of a requested task ID and copies such messages to the removed_msgs array. This function is used for task migration only, when a task need to be moved to other processor

Parameters

requested_task	ID of the requested task
removed_msgs	array pointer of the removed messages

Returns

number of removed messages

int remove_message_request	(	int	producer_task,
		int	consumer_task
	)

Remove a message request

Parameters

producer_task	ID of the producer task of the message
consumer_task	ID of the consumer task of the message

Returns

-1 if the message was not found or the requester processor address (processor of the consumer task)

PipeSlot* remove_PIPE	(	int	producer_task,
		int	consumer_task
	)

Remove the next message from the pipe. The remotion occurs following the order of insertion of the message

Parameters

producer_task	ID of the producer task of the message
consumer_task	ID of the consumer task of the message

Returns

0 if it not found any message, or the PipeSlot pointer if the message was successfully removed

int search_message_request	(	int	producer_task,
		int	consumer_task
	)

Searches for a message request

Parameters

producer_task	ID of the producer task of the message
consumer_task	ID of the consumer task of the message

Returns

0 if the message was not found, 1 if the message was found

unsigned int search_PIPE_producer

(

int

producer_task

)

Tells if the producer task have some message in the pipe

Parameters

producer_task

ID of the producer task

Returns

0 if it not has, 1 if it has
