cluster_scheduler.h File Reference

This module defines the function relative to mapping a new app and a new task into a given slave processor. This module is only used by manager kernel. More...

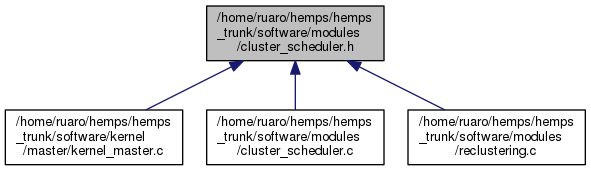

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Functions
void	allocate_cluster_resource (int, int)
void	release_cluster_resources (int, int)
void	page_used (int, int, int)
void	page_released (int, int, int)
int	map_task (int)
int	application_mapping (int, int)
int	SearchCluster (int, int)

Detailed Description

This module defines the function relative to mapping a new app and a new task into a given slave processor. This module is only used by manager kernel.

HEMPS VERSION - 8.0 - support for RT applications

Distribution: June 2016

Created by: Marcelo Ruaro - contact: marce.nosp@m.lo.r.nosp@m.uaro@.nosp@m.acad.nosp@m..pucr.nosp@m.s.br

Research group: GAPH-PUCRS - contact: ferna.nosp@m.ndo..nosp@m.morae.nosp@m.s@pu.nosp@m.crs.b.nosp@m.r

Function Documentation

void allocate_cluster_resource ( int  cluster_index, int  nro_resources  )

inline

Allocate resources to a Cluster by decrementing the number of free resources. If the number of resources is higher than free_resources, then free_resourcers receives zero, and the remaining of resources are allocated by reclustering

Parameters

cluster_index	Index of cluster to allocate the resources
nro_resources	Number of resource to allocated. Normally is the number of task of an application

int application_mapping	(	int	cluster_id,
		int	app_id
	)

This heuristic maps all task of an application Note that some task can not be mapped due the cluster is full or the processors not satisfies the task requiriments. In this case, the reclustering will be used after the application_mapping funcion calling into the kernel_master.c source file Clearly the tasks that need reclustering are those one that have he allocated_processor equal to -1

Parameters

cluster_id	ID of the cluster where the application will be mapped
app_id	ID of the application to be mapped

Returns

1 if mapping OK, 0 if there are no available resources

int map_task

(

int

task_id

)

Maps a task into a cluster processor. This function only selects the processor not modifying any management structure The mapping heuristic is based on the processor's utilization (slack time) and the number of free_pages

Parameters

task_id

ID of the task to be mapped

Returns

Address of the selected processor

void page_released	(	int	cluster_id,
		int	proc_address,
		int	task_ID
	)

This function is called by manager inside it own code and in the modules: reclustering and cluster_scheduler. It is called even when a task is removed from a processor. Automatically, this function update the Processors structure by calling the remove_task function

Parameters

cluster_id	Index of cluster to remove the page
proc_address	Address of the processor that is removing the task
task_ID	ID of the removed task

void page_used	(	int	cluster_id,
		int	proc_address,
		int	task_ID
	)

This function is called by kernel manager inside it own code and in the modules: reclustering and cluster_scheduler. It is called even when a task is mapped into a processor, by normal task mapping or reclustering. Automatically, this function update the Processors structure by calling the add_task function

Parameters

cluster_id	Index of cluster to allocate the page
proc_address	Address of the processor that is receiving the task
task_ID	ID of the allocated task

void release_cluster_resources ( int  cluster_index, int  nro_resources  )

inline

Release resources of a Cluster by incrementing the number of free resources according to the nro of resources by reclustering

Parameters

cluster_index	Index of cluster to allocate the resources
nro_resources	Number of resource to release. Normally is the number of task of an application

int SearchCluster	(	int	GM_cluster_id,
		int	app_task_number
	)

Selects a cluster to insert an application

Parameters

GM_cluster_id	cluster ID of the global manager processor
app_task_number	Number of task of requered application

Returns

> 0 if mapping OK, -1 if there is not resources available
